Material:
※ Insulator : Glass-Filed Thermoplastic PBT, UL94V-0 rated
※ Front shell : 60u" Nickel Over 50u" min Copper
※ Back shell : 100u" Tin Over 50u" min Copper
※ Clinch Nut : Brass, Nickel Plated.
※ Screwlock : Stell, Nickel Plated.
Electrical:
※ Insulation Resistance : 1000 magohms at 500 VDC.
※ Dielectric Withstanding Voltage : 1000 VAC/rms 60Hz for 1 minute
※ Environmental:Temperature Range : -55˚C~+85˚C
※ Contact Resistance : 20 milliohms
※ Current Rating : 3AMP
※ Volatge Rating : 250 VAC/rms 60Hz

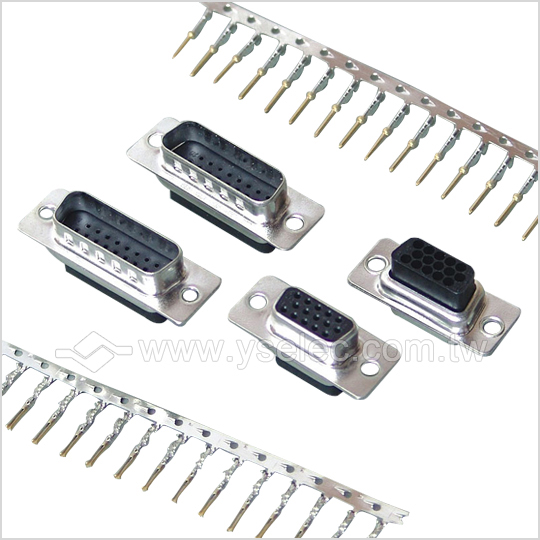

►D-Sub Miniature
106 SERIES
D-SUB H.D. Crimp Type
DETAIL
