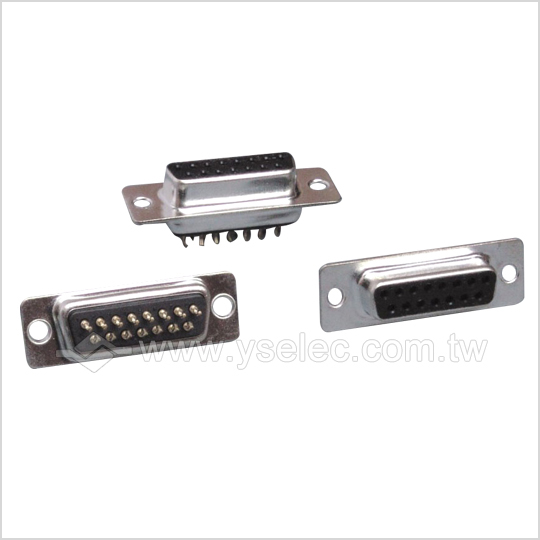

►D-Sub Miniature

159 SERIES

D-SUB Edge Type
DETAIL
Material
※ Insulator : Glass-Filed Thermoplastic PBT, UL94V-0 rated
※ Contact : Brass
※ Shell : Steel, 100u' Tin Over 50u' min Copper.
※ Clinch Nut : Brass, 100u' min Nickel Plated.
※ Boardlock: Brass, 100u' min Tin Plated.
※ Screwlock : Brass, 100u' min Nickel Plated.

Electrical
※ Contact Resistance : 20 millohms Max at 1 AMP DC.
※ Insulation Resistance : 1000 magohms at 500 VDC.
※ Dielectric Withstanding Voltage : 1000 VAC/rms 60Hz for 1 minute
※ Current Rating : 3 AMP
※ Volatge Rating : 250 VAC/rms 60Hz
